Downspouts and Drainage in Miami, FL

Overcoming High Ground Water Tables and Slab Foundation Erosion

In Miami-Dade County, the water table often sits just 2 to 4 feet below surface grade during the wet summer months. When roof downspouts dump hundreds of gallons of water directly at the building corners, the soil quickly becomes saturated. Concentrated hydrostatic pressure erodes soil support beneath monolithic concrete block foundations, causing foundation settlement and interior floor tile cracking.

Eliminating Algae Stains and Paver Settling Along Walkways

Uncontrolled downspout discharge over entry walkways, driveways, and travertine pool decks creates chronic dampness. In South Florida's warmth, damp pavers quickly breed slick green and black algae, presenting severe slip-and-fall hazards. Furthermore, high-velocity water washouts undermine bedding sand, causing expensive pavers to sink and settle unevenly.

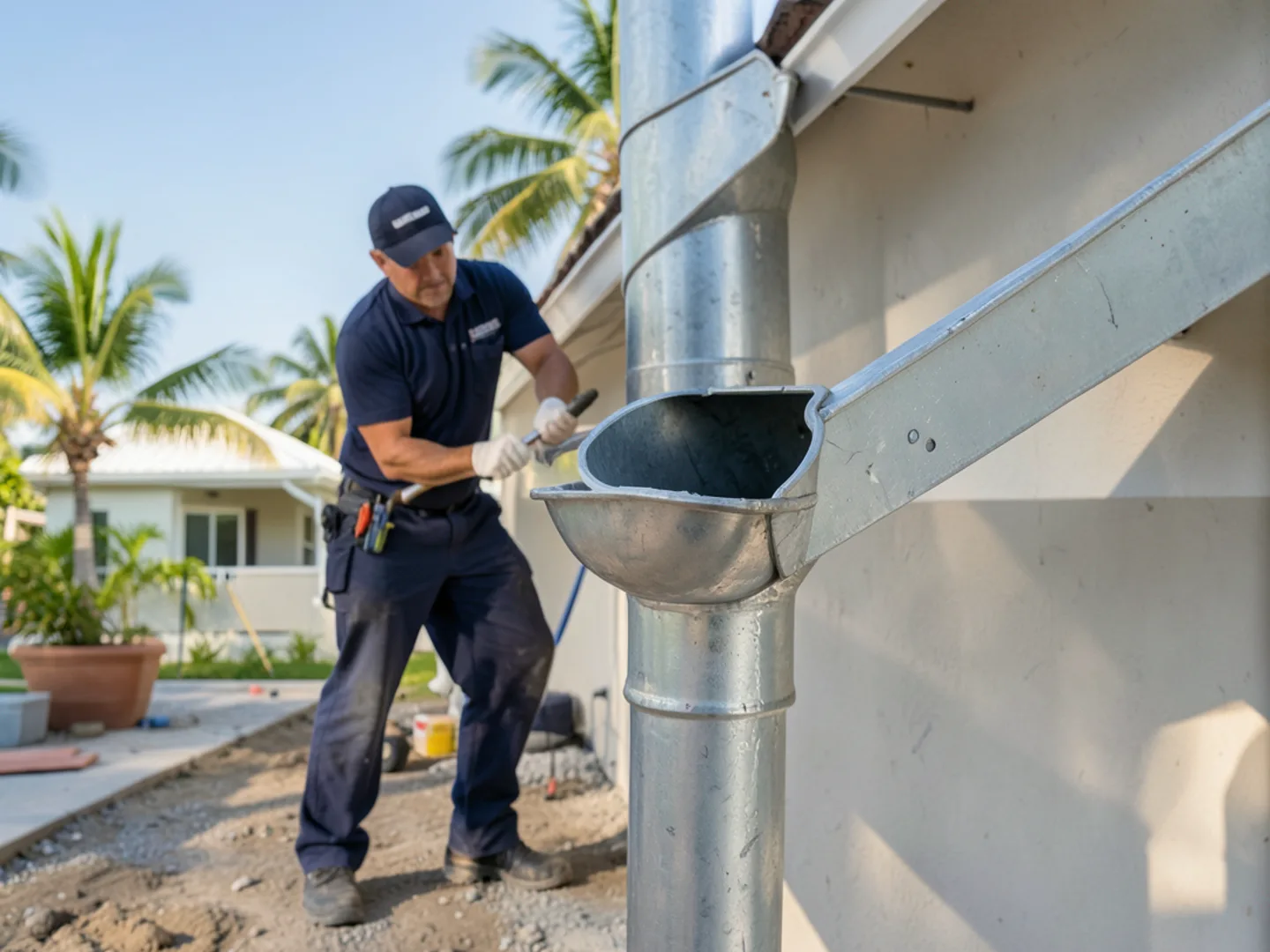

Tripling Discharge Volume to 92 Gallons Per Minute

Under International Plumbing Code (IPC) flow calculations, a standard 2x3-inch rectangular downspout drains up to 30 gallons per minute (gpm). By contrast, an oversized 3x4-inch rectangular downspout drains up to 92 gpm—more than triple the hydraulic capacity. Upgrading to 3x4-inch drops allows gutters to empty rapidly before water levels reach the trough lip.

Strategic Leader Placement Based on IPC Roof Catchment Tables

We calculate downspout counts using strict roof catchment square footage formulas. Under Florida Building Code Plumbing guidelines, we position drops every 20 to 30 linear feet, ensuring no single downspout is overwhelmed by multiple converging roof valleys or steep multi-story pitches.

Step-by-Step Drainage Installation Methodology

Our technicians execute each phase with commercial-grade equipment and proven construction methods:

• Step 1: Roof Drainage Mapping & Catchment Survey: We measure roof catchment areas, assess roof pitch, identify exterior obstacles, and locate natural lot slope runoff vectors.
• Step 2: Scupper Hopper & Outlet Fitting: On flat roofs, we mount custom-fabricated conductor heads beneath parapet scuppers, ensuring watertight perimeter flashing.
• Step 3: Precision Downspout Assembly: We roll-form or assemble heavy-gauge 3x4-inch aluminum leaders, securing all elbow seams with color-matched blind rivets.
• Step 4: Structural CBS Masonry Fastening: Brackets are installed every 8 to 10 feet, drilled into concrete block and secured with blue Tapcon masonry fasteners.
• Step 5: Underground Trenching & PVC Laying: If subterranean routing is chosen, we trench a minimum 1/8-inch per foot fall, lay rigid 4-inch PVC pipe, and install pop-up emitters.
• Step 6: High-Flow Flood Test & Final Magnet Sweep: We discharge pressurized water through all lines to verify rapid flow and conclude with a magnetic lawn sweep.

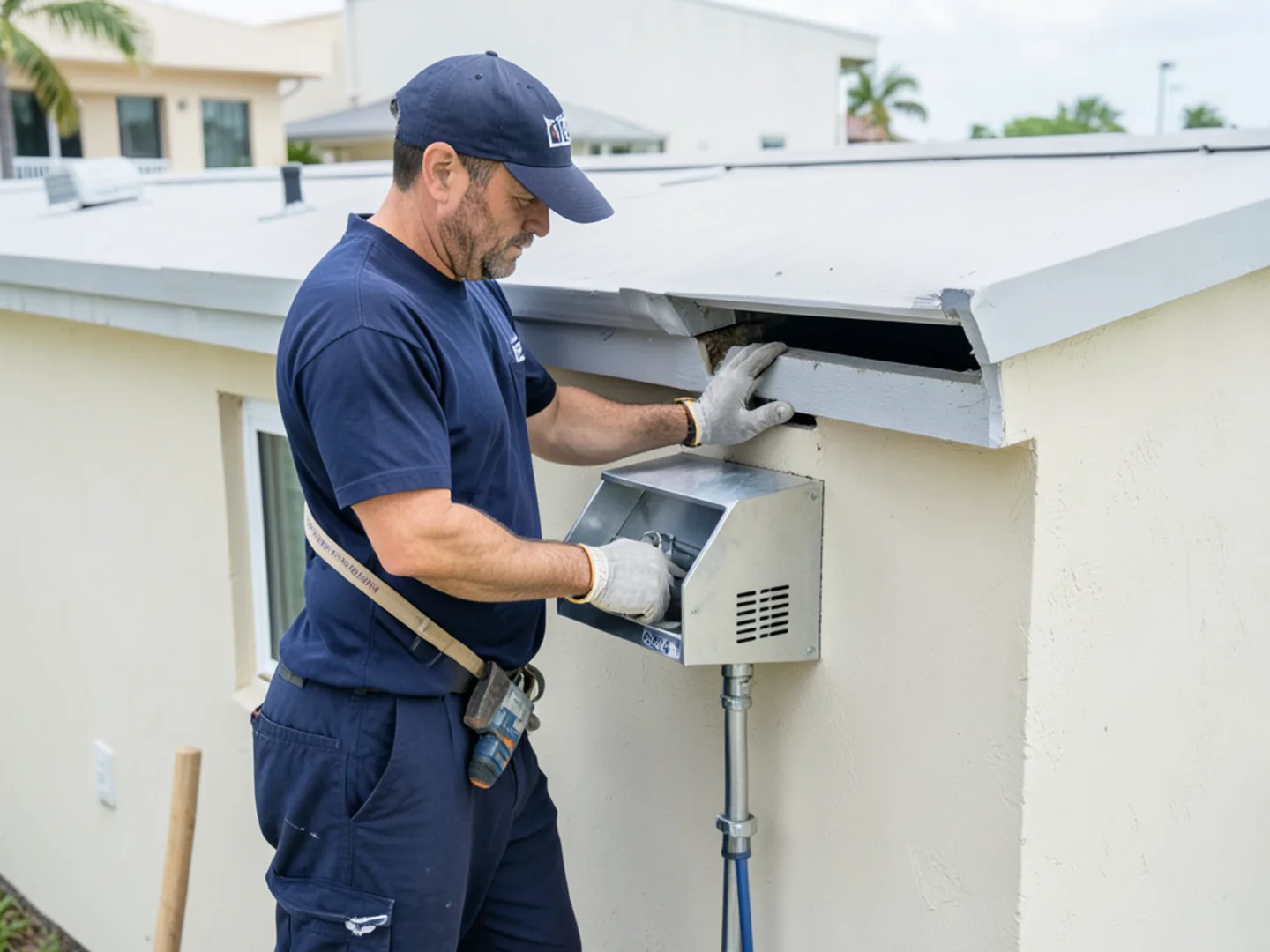

Custom Leader Heads (Conductor Boxes) for Parapet Wall Scuppers

Flat-roof homes, modern townhomes, and Pueblo Revival architecture drain water through through-wall openings called scuppers. Water exiting raw scuppers splashes against exterior walls, causing severe stucco staining, paint peeling, and localized concrete spalling. We fabricate custom aluminum and copper scupper leader boxes (conductor heads) that mount directly beneath scupper openings, funneling high-velocity water smoothly into vertical downspouts.

Each leader head acts as an atmospheric buffer: during peak cloudbursts when downspouts run full, the wide open top allows air to escape, eliminating hydraulic vacuum resistance and preventing water from backing up onto flat roof membranes.

Preventing 5-Inch Rooftop Ponding on Low-Slope Modern Architecture

Miami-Dade building officials strictly regulate flat-roof overflow to prevent dangerous rooftop ponding exceeding 5 inches. Under Florida Building Code Section 1503, emergency secondary scuppers must remain unobstructed. Properly sized leader heads ensure open-air gravity overflow, preventing structural roof collapse during tropical storm cloudbursts.

We custom-build scupper boxes with integrated overflow lip slots positioned two inches below roof coping, ensuring emergency drainage remains fully functional even in worst-case tropical deluge scenarios.

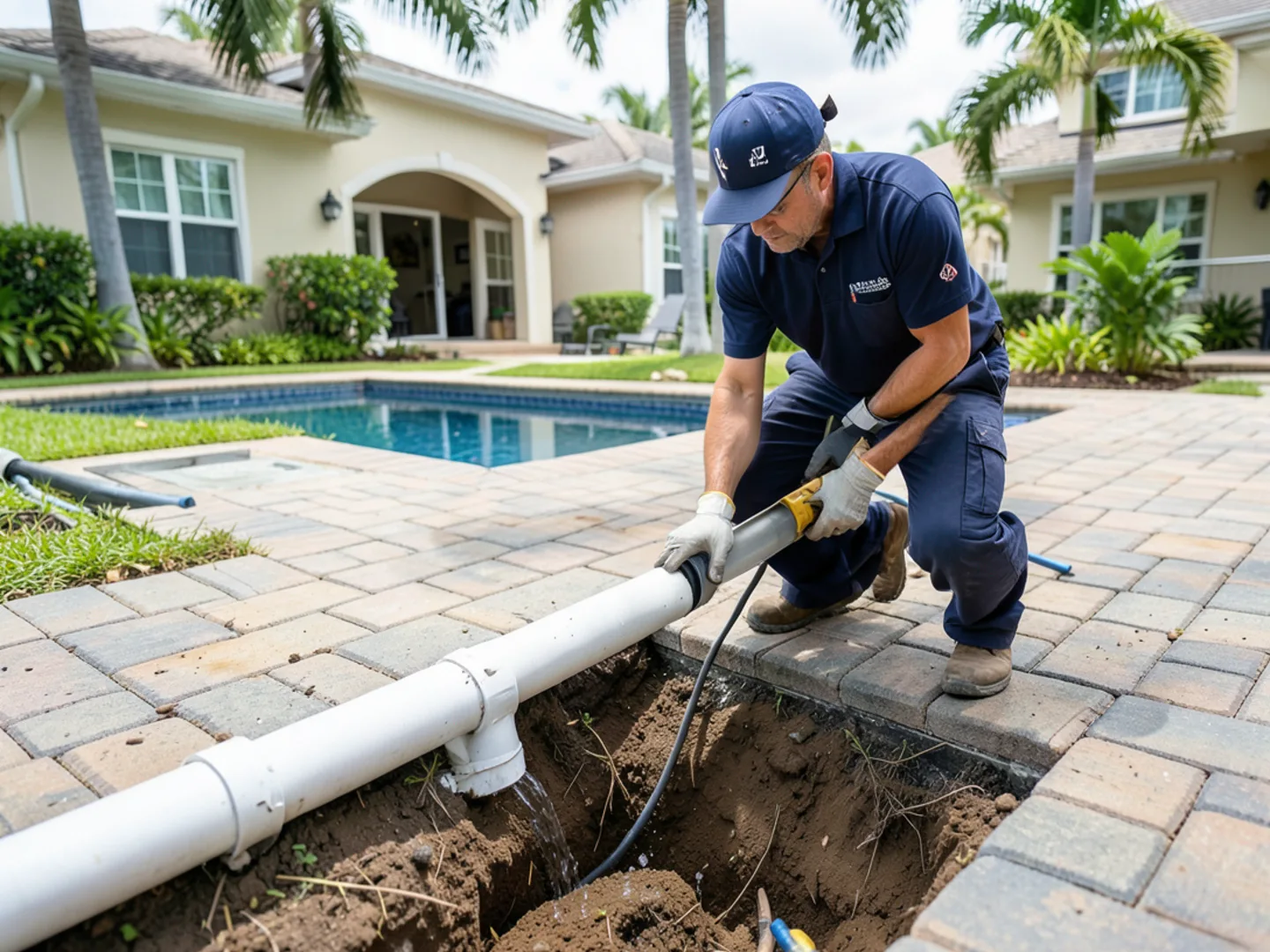

Piping Water 10+ Feet Away from Zero-Lot-Line Foundations

For properties with narrow zero-lot-line setbacks or paver patios extending to the property line, we connect downspouts into solid 4-inch PVC underground piping. We exclusively use rigid, smooth-wall Schedule 40 or SDR-35 PVC pipe rather than flimsy corrugated flex-pipe, which routinely collapses under lawnmowers, traps pine needles, and becomes crushed by tree roots.

The pipe slopes away from the home at a minimum 1/8 inch per foot, terminating in a spring-loaded pop-up emitter set flush with the turf. During storms, hydrostatic pressure lifts the emitter lid to disperse water harmlessly across the lawn; when rain ceases, the lid snaps shut to block lawn mowers, leaves, lizards, and breeding mosquitoes.

In-Line Debris Traps and Surface Cleanout Access Ports

To prevent underground pipe blockages, we install accessible leaf-diverter cleanouts at eye level on downspouts. These stainless mesh filters eject wind-blown debris out the front of the pipe while allowing clean water to continue underground, ensuring pipes stay free-flowing without requiring annual excavation or snake cleaning.

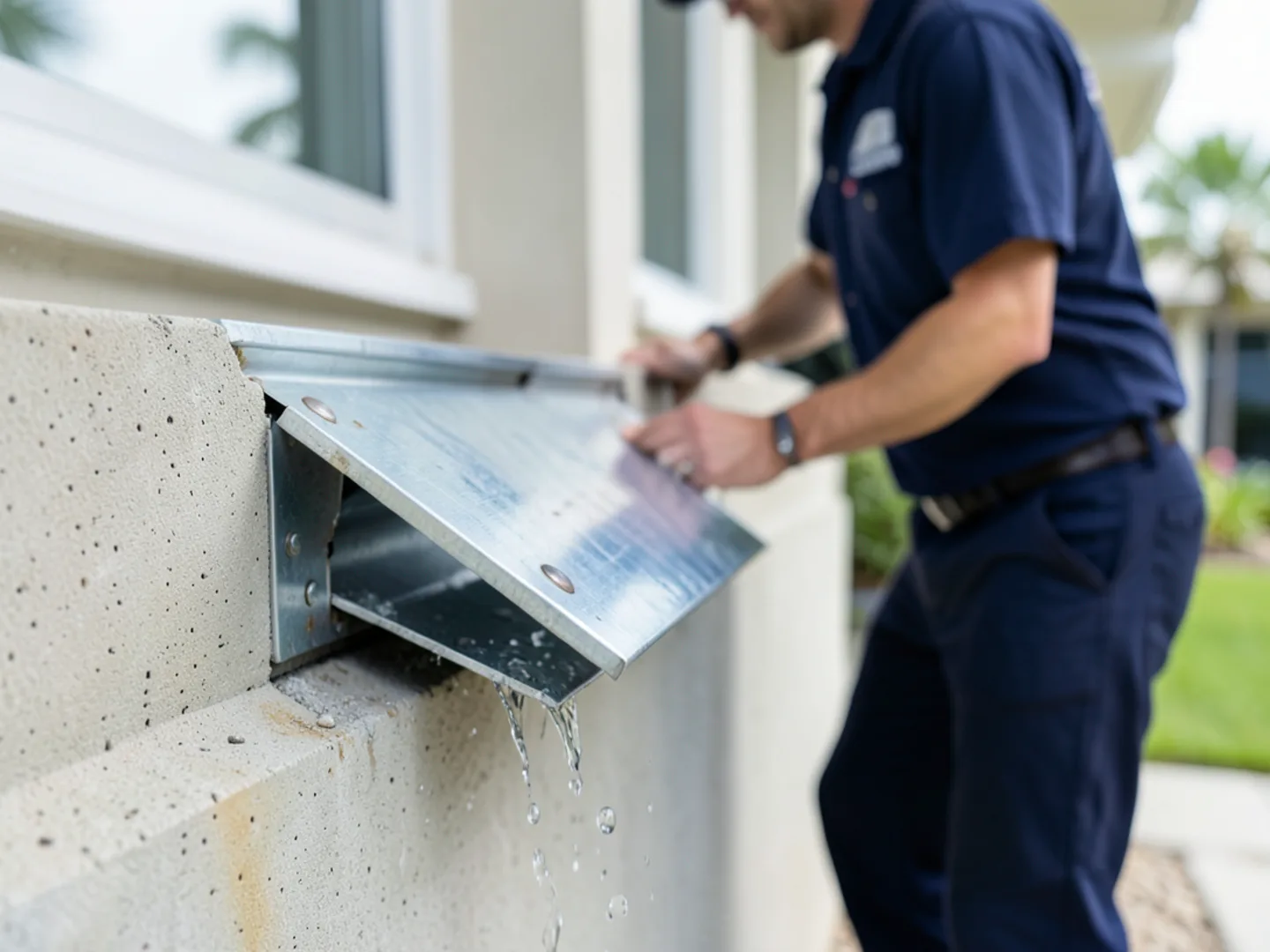

For above-ground lawn discharge, we offer hinged flip-up elbow extensions. These aluminum extensions channel water 4 to 6 feet away from slab edges but can be flipped up vertically in seconds when mowing the lawn or edging landscape beds.

Key Drivers of Downspout and Drainage Investment

Four technical factors determine the investment needed to complete your drainage project:

• Total Vertical Drop Footage: Height of roof eaves, single-story drops (10–12 ft) versus two-story drops (20–24 ft).
• Leader Size & Material: Oversized 3x4 aluminum versus premium heavy-gauge 4x5 or architectural 16-oz copper drops.
• Custom Scupper Leader Boxes: Number of flat-roof or parapet through-wall openings requiring custom metal conductor heads.
• Subterranean Trenching Distance: Length of trenching through grass, paver walkway disassembly, or concrete sidewalk crossings.

Florida Plumbing Code Section 1106 and Miami-Dade Section 102.2 Exemption

Under Section 102.2 of the Miami-Dade County Code, installing or retrofitting exterior downspouts and shallow underground pop-up drainage extensions on residential properties does not require a separate building permit, speeding installation timelines. However, hydraulic capacity must strictly comply with Florida Building Code Plumbing Chapter 11 (Section 1106), which establishes minimum cross-sectional area requirements based on local 100-year rainfall rates (exceeding 4.5 inches per hour in Miami). Homeowners should confirm that contractors maintain active Florida DBPR licensure and full commercial liability and workers' compensation coverage.
